EMC Question of the Week: July 1, 2019

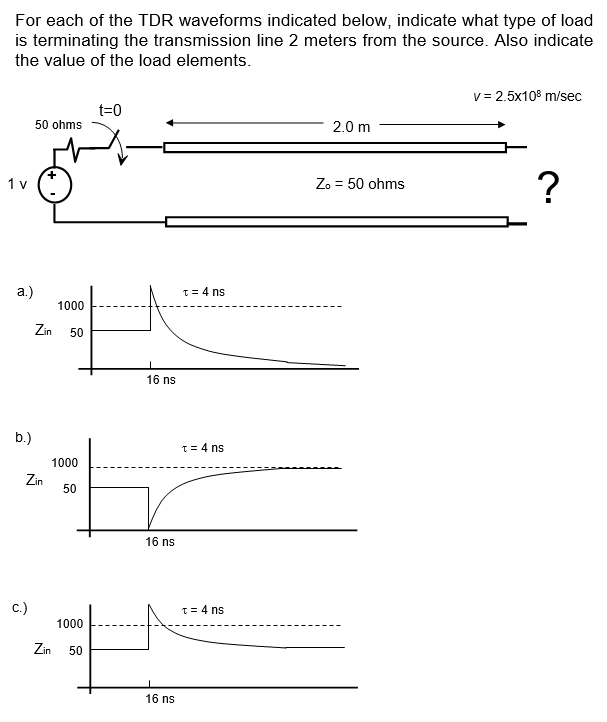

A time-domain reflectometer (TDR) is used to measure a transmission line’s impedance as a function of
- time
- frequency
- temperature
- location
Answer
The correct answer is "d". A TDR sends a voltage step signal down a transmission line and monitors the signal reflections. The measured sum of the incident and reflected voltages as a function of time translate to the transmission line’s impedance as a function of location.
