## I/O Coupling EMI Calculator

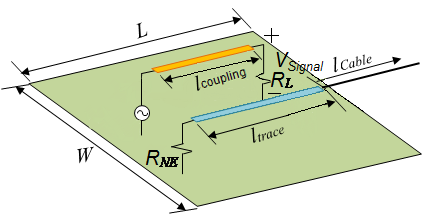

High frequency signals can couple to I/O nets that carry the coupled energy away from the board. The common-mode currents induced on cables attached to I/O nets can result in significant radiated emissions. A closed-form expression was developed to estimate the maximum radiated emissions in [1]. The algorithm employed to make the calculations below is described in [2].

[1] C. Su and T. Hubing, "Calculating Radiated Emissions due to I/O Line Coupling on Printed Circuit Boards using the Imbalance Difference Method," *IEEE Trans. on Electromagnetic Compatibility,* vol. 54, no. 1, Feb. 2012, pp. 212-217.

[2] C. Zhu and T. Hubing, "Maximum Radiated Emission Calculator: I/O Coupling Algorithm," CVEL-13-045, Aug. 24, 2013.
